1.Product Description

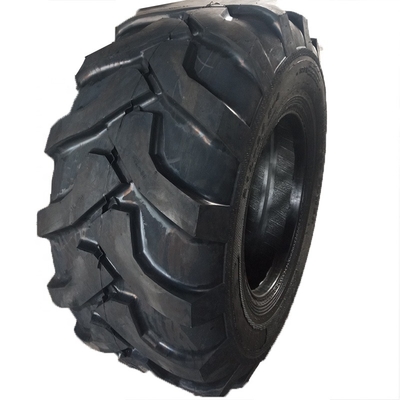

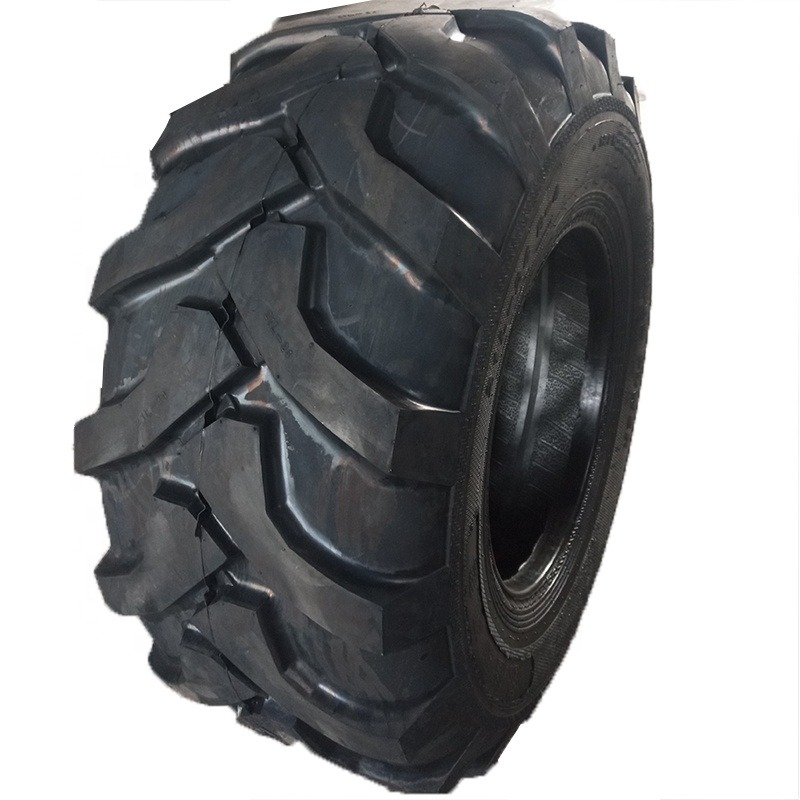

>>Used for Backhoe.
>>These are pneumatic tyres.
>>Two years quality guarantee.
>>With ISO9001, REACH ,SGS certificate.
2. Complete Sizes:
| Size | Standard Rim | Section Width(mm) | Overall Dia(mm) | Max Load (kgs) | Pressure(kpa) |
| 16.9-24 | W15L | 429 | 1236 | 3250 | 260 |
| 16.9-28 | W15L | 430 | 1435 | 3450 | 260 |
| 17.5L-24 | W15L | 445 | 1241 | 3170 | 260 |
| 18.4-26 | W16L | 467 | 1426 | 3875 | 250 |
| 19.5L-24 | W16L | 495 | 1314 | 3455 | 230 |
| 21L-24 | DW18 | 533 | 1402 | 3875 | 250 |
| 12-16.5 | 9.75 | 300 | 826 | 2865 | 550 |
| 14-17.5 | 10.50 | 351 | 922 | 3875 | 550 |
| 10-16.5 | 8.25 | 265 | 792 | 2170 | 520 |
| 15-19.5 | 11.75 | 391 | 1029 | 4565 | 485 |
| 12.5/80-18 | W9.0 | 350 | 1000 | 2625 | 370 |
| 14.5/75L-16.1 | 11.75 | 373 | 940 | 1460 |
280 |
| 10.5/80-18 | W90 | 274 | 885 | 1630 |
350 |
3. More Tyres
4.Pattern's Description:
>> Good high temperature resistance and low heat, so that the tires in the harsh environment,
there is still good safety
>> Low compression deformation, high recovery characteristics, the tire under high load
conditions, still maintain good operating performance.
>> Low heat, cut-resistant material composition, in the long distance, long time operation, still
has excellent load capacity.
5.Packaging & Shipping Details:
>>Packing:Standard Export Package or As Customer Request.
>>Shipping: by sea , by train or by air ,from Qingdao port .
>>Trade Terms: FOB,CFR,CIF etc.
>>Payment terms: T/T, L/C,Western Union etc.
>>Delivery time: Within 7-15 days after deposit .
6.Why Choose US ?
>>We have professional team to provide comprehensive one -stop service for you .
>>Our tyres have passed the Certificates: ISO9001,DOT,CE, REACH etc.
>>OEM/ODM Service to satisfy different customers requirments.
>>We have first-class production line and strict quality management system.
>>We have big production capacity to guarantee fast delivery and on-time shipment.
We are Alibaba.com Gold Plus Supplier !
FAQ
1. How to maintain proper air pressure?
>>Tyres should be inflated according to current national standards stipulated in the form of air pressure &loading index.
>>After inflation tyre should be checked carefully for leak or not, If leak found shall be repaired in time.
>>Tyres in use must be ensured of normal internal air pressure, When long-running or driving, tyre pressure should be regularly checked.
>>Long-stay parking, front and rear axles must be set up. High pressure causes crown grinding, top bursting;low pressure makes tyre deformation and damage.
>>Twin tyres fitted must be assured of consistent inflation pressure, do not fit one by a higher pressure and another by lower air pressure.
2. How to maintain proper loading?
>>Tyre loads must comply with current national standards.
>>Do not overloading. Loading goods in vehicles should be distributed evenly to avoid uneven load.
>>Overloading can cause serious abnormal tyre tread wear, shoulder separation, delaminating, toe blasting etc.
>>High ply level and high tyres load index not suitable high-speed driving.
>>Enhanced design tyres can loaded more properly according to standards of design.
3. How to maintain proper speed?
>>Different limits of speed levels with all kinds of tyres, speeding may cause early tyre damage.
>>Do not speeding, minimize urgent braking and sharp turns in bad road, avoiding of the tyre’s hitting other objects, especially sharp objects.
>>High speed tyres will be heated up easily, once its temperature is too high, measures should be taken timely(e.g.stopping for natural cooling) to prevent the carcass bursting.
>>High-speed tyres assembled with rims must be tested for balancing weight and calibration.
4. How to maintain proper storage?
>>Tyres should be stored in the warehouse avoiding the sunning and raining.
>>Tyre must be in storage away from heat, ozone, and generator.
>>Tyres must not be not in storage together with oil, flammable and corrosive chemical materials.
>>Tyres shall be in storage upright, do not keep it horizontally, pilling up one on top of hanging it by center hole.
>>Tyre should be used firstly in order of first out from production or storage.
5. How to pack and transport properly?
>>When handling tyre by forklift, do it from side tyres, do not lift it with fork into the center hole of bead.
>>Do not hang or raise tyres by rope, hook or fork directly, do it with wide textile fiber belt.
>>Sets of tyres shall be wrapped or packed by rope or packing tape for avoiding damage of falling.
>>Loading goods must be properly distributed into vehicles.
6. How to do the assembly properly?
>>Tyres must be fitted to the proper models of vehicles and the wheel, installation and removal of
tyres with specialized tools and equipments, any violent prying and hitting prohibited.
>>Tyres on the same axle must be the same structure, size, pattern and ply.
>>Never install bias tyres and radial tyres together.
>>Directions of tyres funning must be kept consistent to the vehicle when assembly directional
tyres.
>>Keep chains equipped in tyres symmetrical. If not uninstall it immediately.
