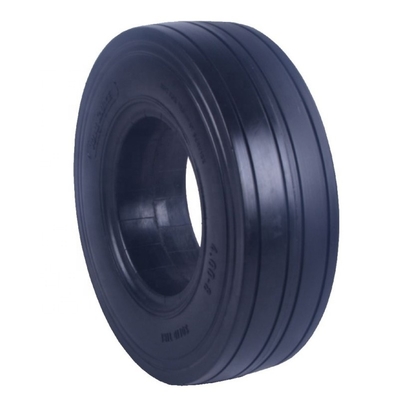

Airport GSE Baggage Cart solid tires 400X8
Characteristics:
1.Three stage construction with a concave sidewall
1) Wear resistant tread compound offersextreme resistance to chipping and chucking
2) Cushion center and concave side walls reduce vibration and increase traction.
3) High strength base and steel ring reinforced maintains absolute rim fit.
2.Its main characteristic is its low cost in relation with its optimal performance.
3.It offers great tear and wear characteristics, extreme resistance to chipping and chucking, and low heat build up.
4.It bears the heaviest loads while offering high stability to the industrial material handing equipment.
5.Low rolling resistance for economy performance
6. Available in non-marking tire
| SIZE | PATTERN | RIM | O.D.mm | S.W.mm | MAX.LOAD(kg) | ||||||
| Couterbalanced Lift Truck | Other Industrial Vehicles 10km/h | ||||||||||
| 10km/h | 16km/h | 25km/h | |||||||||
| LOAD | ROTATION | LOAD | ROTATION | LOAD | ROTATION | ||||||
| 4.00-8 | TP301,TP303 | 2.50 | 402 | 110 | 910 | 700 | 830 | 640 | 765 | 590 | 695 |
| 3.00 | 423 | 115 | 1090 | 840 | 995 | 765 | 925 | 710 | 840 | ||
| 3.75 | 423 | 115 | 1175 | 905 | 1080 | 830 | 1000 | 770 | 910 | ||
Available sizes:
Pneumatic shaped solid tyre for forklift:
4.00-8, 5.00-8, 18x7-8, 18x9-8, 21x8-9, 23x9-10, 23x10-12, 27x10-12, 355/65-15, 6.00-9, 7.00-12, 7.00-15, 28x9-15, 8.25-15, 250-15, 300-15, 10.00-20, 12.00-20, 12.00-24, 31x10x16, 33x12x20, 14.00-20, 14.00-24, 16.00-25, 385/65-24, 17.5-25, 20.5-25, 23.5-25, etc.
Press-on solid tyre for forklift:
8 1/2x4x4, 9x5x5, 10x3x6 1/4, 10x5x6 1/4, 10x5x6 1/2, 10x6x6 1/2, 10x7x6 1/4, 10 1/2x5x5, 12x5x8, 13x3 1/2x8, 14x4 1/2x8, 14x8x10, 15x7x11 1/4, 15 1/2x5x10, 16x4 1/2x12, 16x5x10 1/2, 16x7x10 1/2, 18x5x12 1/8, 18x9x14, 20x8x16, 21x5x15, 22x10x16, 22x14x16, 26x5x20, 28x7x22, 36x16x30, etc.
Cured-on solid tyre for platform lift:
31x5x7, 33x6x8, 22x7x17 3/4, 31x6x10, 33x6x11, 15x5, 14x4.5, 12x4.50, 12.5x4.25, 406x125, 400x120x298, 310x100x250, 305x76-254, 305/100-255, 305x105, 323x100.
